Installing our first homelab application with GitOps
After setting up Flux on the cluster, its time to put it to use! I’ll be deploying an app called Linkding, which is a bookmark manager.
Ways to structure your git repo
Flux has some recommendations on how to structure your git repo. For my homelab I’ll be using the below structure.
├── apps
│ ├── base
│ ├── production
│ └── staging
├── infrastructure
│ ├── base
│ ├── production
│ └── staging
└── clusters
├── production
└── staging
For details and alternatives you can see more details here…
https://fluxcd.io/flux/guides/repository-structure
Kustomization file
Flux has a kustomization file that reads in other kustomize files (its the entry point)
Any Kustomization file in the clusters > staging dir will be included.
Flux app config file
Add this file to clusters > staging (it is configured to look in the ./apps/staging path that we are setting up in the next step)
# apps.yaml
apiVersion: kustomize.toolkit.fluxcd.io/v1
kind: Kustomization
metadata:
name: apps
namespace: flux-system
spec:
interval: 1m
retryInterval: 1m
timeout: 1m
sourceRef:
kind: GitRepository
name: flux-system
path: ./apps/staging # references the dir just setup
prune: true
Base layers
Shared config is stored in base layers and then overridden in derived layers with a patches definition.
Eg.
├── apps
│ ├── base
│ ├── production
│ └── staging
Adding an app Kustomization file
mkdir -p apps/staging/linkding
mkdir -p apps/base/linkding
cd apps/staging/linkding
touch kustomization.yaml
# kustomization.yaml
apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization
namespace: linkding
resources:
- ../.../base/linkding # reads in base config directory
cd apps/base/linkding
touch kustomization.yaml
touch namespace.yaml
touch deployment.yaml
# kustomization.yaml
apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization
resources:
- namespace.yaml
- deployment.yaml
# namespace.yaml
apiVersion: v1
kind: Namespace
metadata:
name: linkding
# deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
name: linkding
spec:
replicas: 1
selector:
matchLabels:
app: linkding
template:
metadata:
labels:
app: linkding
spec:
containers:
- name: linkding
image: sissbruecker/linkding:1.31.0
ports:
- containerPort: 9090

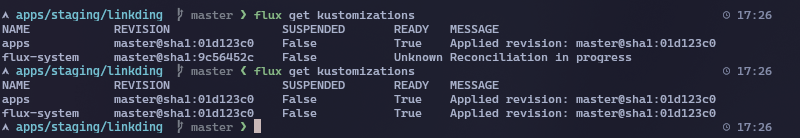

Once pushed to git you can check the status by running the below command. Once the cluster state has been reconciled, you will see the state change (or you will receive a notification of any failures)
flux get kustomizations
And then port forward to check that the app is running.
kubectl port-forward linkding-pod 8080:9090 #8080 is localport 9090 is the port exposed by deployment
We will be setting up a service to manage this soon. Until next time 😍
